Accuton Sandwich bass, S220-6-222

S220-6-222
899.00 € Maksudeta
1,114.76 € tax incl. for EU buyers

Accuton Sandwich bass, S220-6-222

Kogus
Toodete saadavus tellimisel

Sandwich Bass Driver

Domematerial Sandwich
Application Bass
Overall diameter 220 mm
Cutout Diameter/Square 191 mm
Overall depth 112.5 mm
Motor assembly depth 49.5 mm
Motor assembly diameter 120 mm

Vented box design parameters

Vb: 30L, Fres: 23Hz with passive radiator, -12dB @ 25Hz, Q: 0.47 (optimal A/V alignment)

Vb: 25L, Port diameter: 70mm, Length: 230mm, Fres: 40Hz, F-3dB: 43Hz, Q: 0.50

Vb: 40L, Port diameter: 70mm, Length: 155mm, Fres: 37Hz, F-3dB: 37Hz, Q: 0.43 (extended bass)

Closed Box design parameters

Vb: 12L, -11dB @ 40Hz, F-3dB: 69Hz, Q: 0.71 (typical)

Vb: 25L, -8dB @ 40Hz, F-3dB: 70Hz, Q: 0.50 (extended bass)

Mechanical Data
SpecificationValueUnit
Overall diameter 220 mm
Cutout Diameter/Square 191 mm
Min. frontplate thickness 9 mm
Overall depth 112.5 mm
Motor assembly depth 49.5 mm
Motor assembly diameter 120 mm
Screwfitting DIN 7984 / Ø 4,50 mm
Terminal + : 6.3 x 0.8 / - : 4.8 x 0.8 mm
Shipping weight (pair) 9.5 kg
Shipping box size (pair) 250 / 290 / 250 mm
Thiele/Small parameters
SpecificationValueUnit
Sensitivity (2.83V / 1m) Lp 91.5 dB
DC-resistance Re 6.52 Ohm
Resonance frequency Fs 25 Hz
Equivalent volume of air Vas 89.68 L
Mechanical Q Qms 3.83
Electrical Q Qes 0.27
Total Q Qts 0.26
Effective piston area Sd 224 cm²
Moving mass Mms 32.15 g
Suspension compliance Cms 1.26 mm/N
Mechanical resistance Rms 1.32 kg*s
voice coil parameters
SpecificationValueUnit
Power handling P 150 Watt
Linear excursion Xmax +/- 5.25 mm
Voice coil diameter 55 mm
Voice coil former material Ti
Voice coil material Cu
Voice coil inductance Le 0.36 mH
Force factor BI 10.95 N/A
Motor type unterhängig
Ferrofluid filling nein

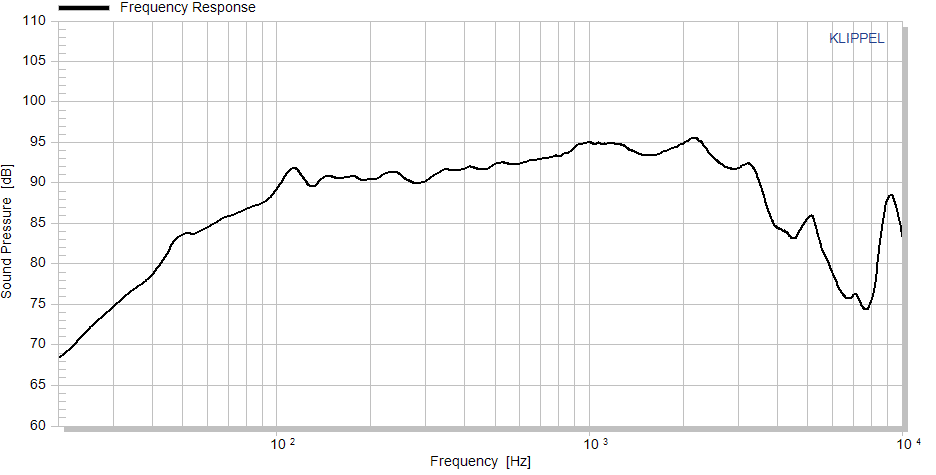

Frequency Response [DB] :

Impedance [Ohm] :

Harmonic Distortion [%] :

S220-6-222
