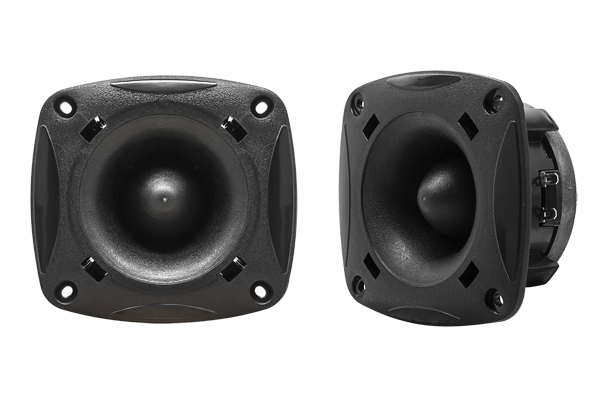

EarthquakeSound SBT-200 Super Bullet Tweeter

SBT-200 Super Bullet Tweeter

The SBT200 Super Bullet Tweeter delivers smooth, exceptional detail and clarity in the high frequencies to your system.

Sold and priced per piece.

Features:

• Durable plastic tweeter casing
• Copper voice coil
• 7.9oz Barium Ferrite Magnet

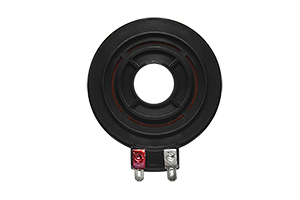

• Optional Replacement Voice Coil Available

Specifications:

• Model nr.: SBT-200

• EAN: 0-168975-910578

• Power Handling: 200 Watt
• Nominal Impedance: 8 ohm
• Frequency Response: 2.5kHz - 22kHz
• Sensitivity: 105 dB
• Fs: 2014 Hz



Parameters:

• Re: 5.65 ohm
• Qts:3.58
• Qes:8.89
• Qms:6.51

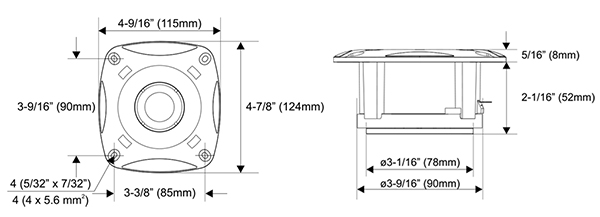

Dimensions:

SBT-200 Manual

SBT-200 Press Release

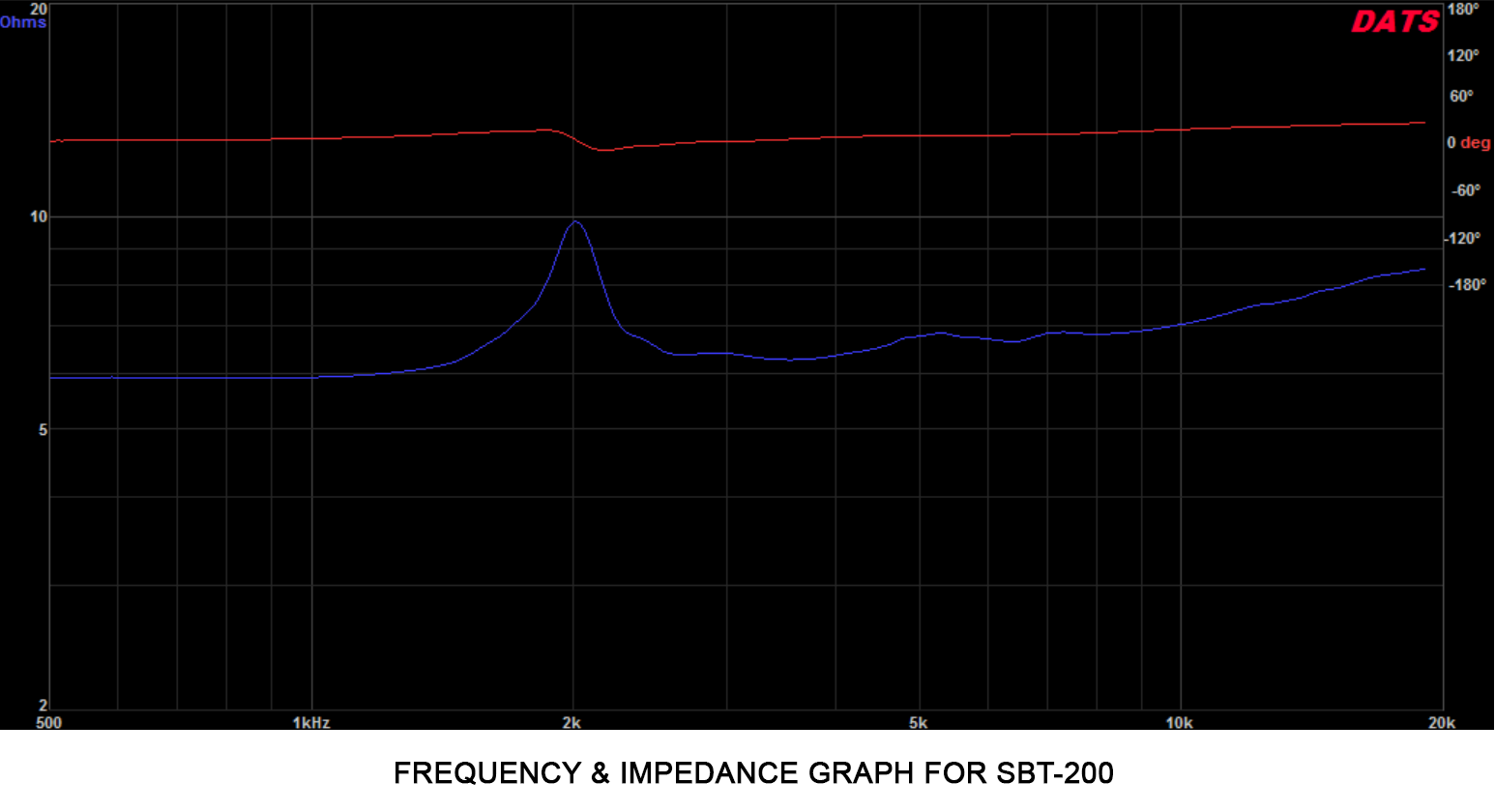

Impedance & Frequency Graph for SBT-200
